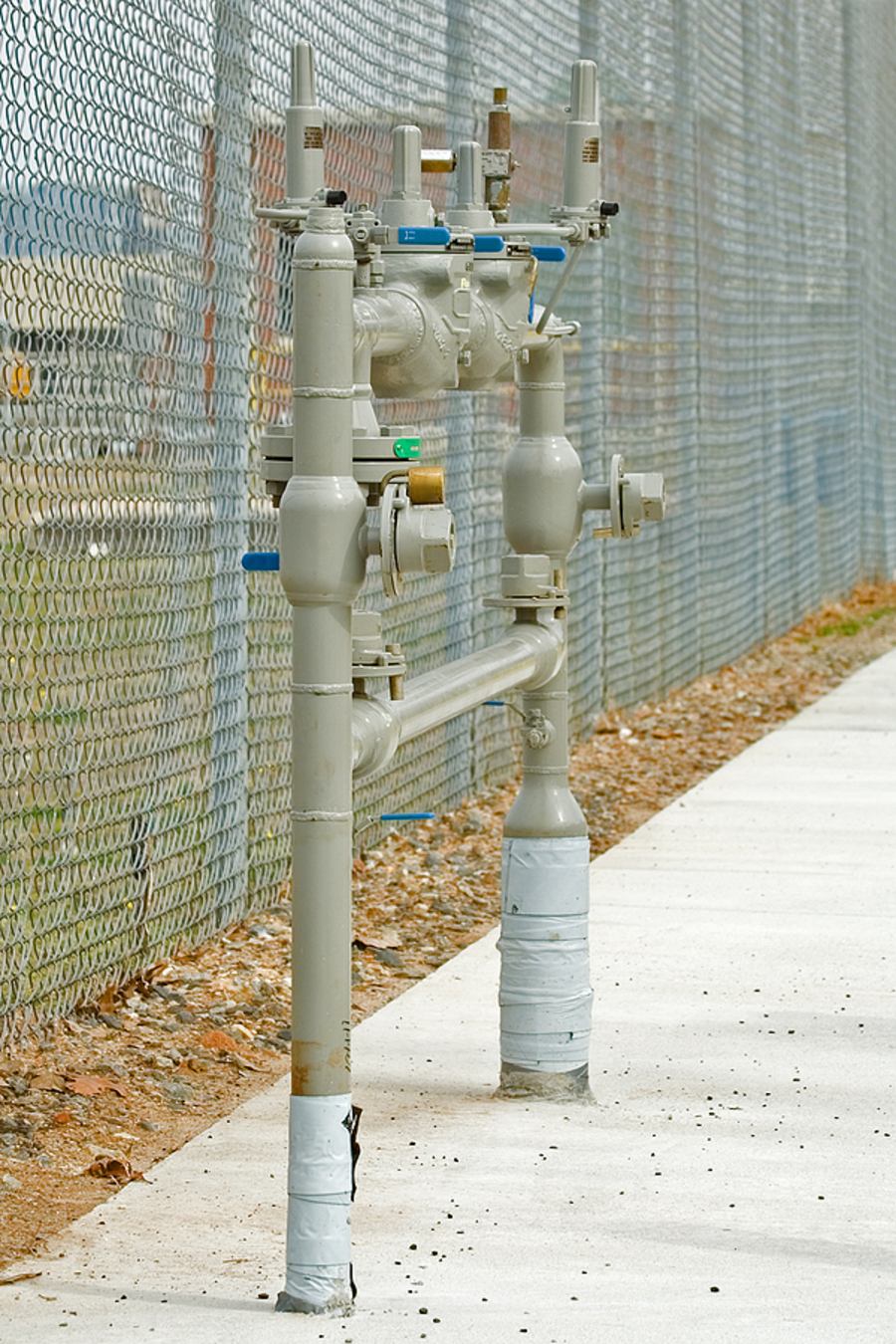

Sprinkler Backflow Preventer Leaking and Tips For Fixing It

2. Removing the Nut on the Bell Cover

Use a wrench to remove the nut from the bell cover. However, try not to strip the nut upon turning the wrench. You may also notice rust that exists on the nut due to prolonged water leaks. You should slide the bell cover from the body of the valve.

3. Inspecting the Interior of the Valve

If you can notice, there is a poppet and bonnet from the interior of the valve. Gently remove these parts within the body of the valve as they can be in pieces due to steady water leaks.

If you can see any loose pieces, remove these parts as they need to be taken out of the interior before installing new components. Then, you can slide a poppet on the valve and put a bonnet on the poppet.

4. Putting Back the Bell Cover On

You have to slide the bell cover back to the valve and verify that it is leveled on top of the valve. Make sure that the poppet and bonnet are aligned properly if the bell cover has remained to be lopsided before you tighten it down.

5. Installing the Nut to the Valve

Just put the nut on top of the bell cover and tighten it manually into the valve. If possible, try not to use hand tools like wrench or pliers which could damage the threads or nut. Simply turn the base lever of the valve by hand to keep it parallel with the pipe being attached.

6. Turning the Water Supply Back On

After following the instructions, it is safe to turn on the water supply to test the installation. After installation, you have to activate the sprinkler system and keep an eye on the backflow device. Make sure there are no leaks from the connection points.

Try replacing the entire valve if your backflow valve body contains a crack. This will be more appropriate than repairing the components inside. Take note that the crack will allow water to leak from the valve which will cause contamination of water and some unnecessary waste.
